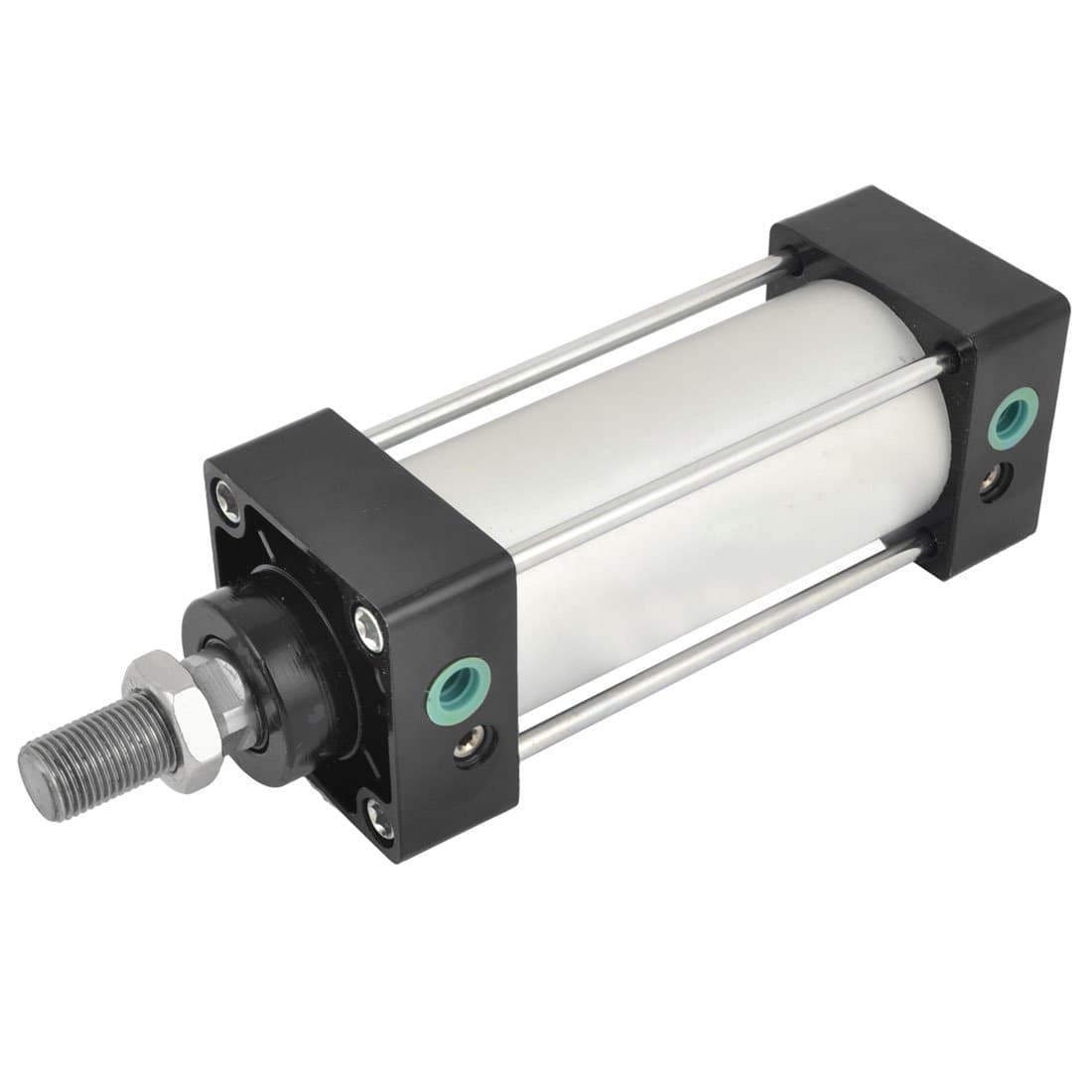

Pneumatic Air Cylinders
Standard double-acting pneumatic cylinders for sealing bars, cutting units, and clamping mechanisms on plastic processing machines. Available in a wide range of bore sizes and stroke lengths.
Features
- Standard ISO double-acting cylinders
- Wide range of bore and stroke combinations
- Magnetic piston for sensor compatibility
- Adjustable cushioning at both ends
- Corrosion-resistant body
- Quick-connect port fittings
Specifications
Bore Sizes20, 25, 32, 40, 50, 63, 80, 100 mm
Stroke Lengths25–600 mm
Operating Pressure0.05–1.0 MPa
MediumFiltered Air (lubricated or non-lubricated)
Temperature Range-20°C to +70°C
StandardISO 6431 / SC Series
